Product Details:
|
| Brightness: | 4000 | Display Panel: | 3x0.64” |
|---|---|---|---|
| Display Technology: | Liquid Crystal Display | Native Resolution: | WUXGA (1920 X 1200) |
| Contrast Ratio(Min): | 15000:1 (w/IRIS) | Keystone Correction: | V: ±30°（auto+manual） H：±15°（manual） Corner Keystone |
| Screen Size: | 0.872~10.736m（30"~300"） | Throw Ratio: | 70"@2.067m；1.37--1.65:1 |
| Highlight: | 1200P Educational Projector,4000 Lumens Educational Projector,4000 Lumens Projector |
||

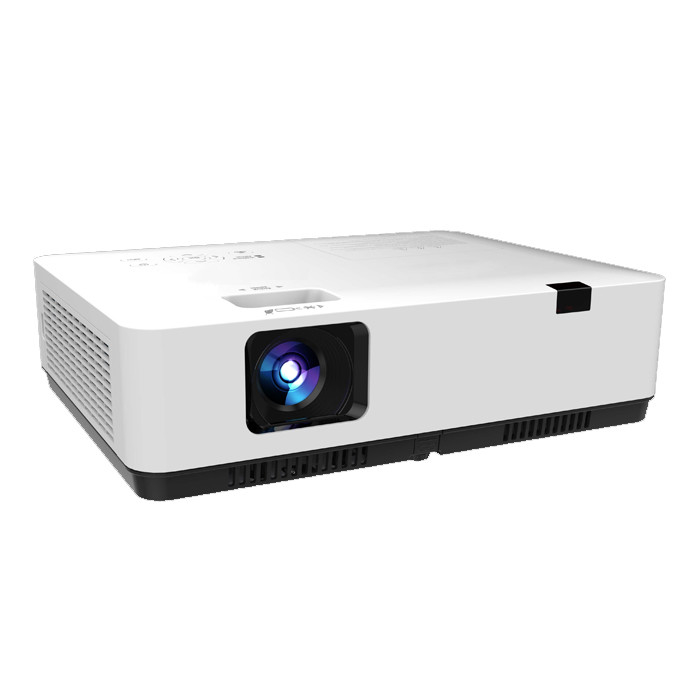

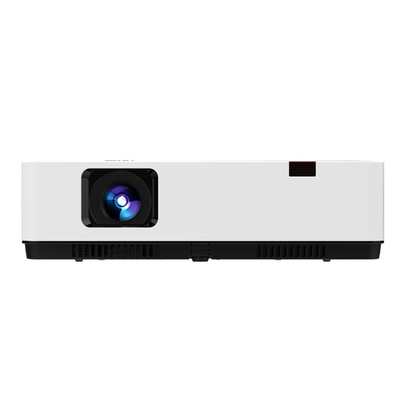

1200P Educational Projector
Educational Commercial Real 1200P 4000 Lumens Projector 3LCD 1.2x Optical Zoom
| Key part | Panel |
LCX183A-(B11 DML) |
|
| PJ Lens | F1.6x1.2 | ||
| Light source | Philips:225W Infinity(Lamp) | ||
| Main IC | Pixworks: PWC878 | ||
| Sony IC | CXD3553+CXA3832 | ||
| Brightness | Brightness (Type) ( Ansi Lumens ) | 4000 | |
| Power consumption(MAX) | 320 | ||
| Light source | Lamp:225W | ||
| Overall Spec | |||
| Display Panel | 3x0.64” | ||
| Panel | Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | ||
| Lamp | Lamp Consumption(W) | Philips:225W Infinity(Lamp) | |
| Lamp Lifetime(H) | 10000H(Normal) /20000H(ECO) | ||
| Zoom/Focus | Manual | ||
| Throw Ratio | 70"@2.067m；1.37--1.65:1 | ||
| F | F:1.6~1.76 | ||
| Projection Lens | f | f=19.158~23.018mm | |
| Zoom Ratio | 1.2x optics | ||
| Screen size | 0.872~10.736m(30"~300") | ||
| CR | Contrast Ratio(Min) | 15000:1 (w/IRIS) | |
| Noise | Noise(dB)@1m | ECO: 30dB Normal: 37dB |
|
| Uniformity | Uniformity(Actual Min) -JISX6911 |
90% | |
| AR | Aspect Ratio | 16:10 (Standard)/4:3(Compatible) | |

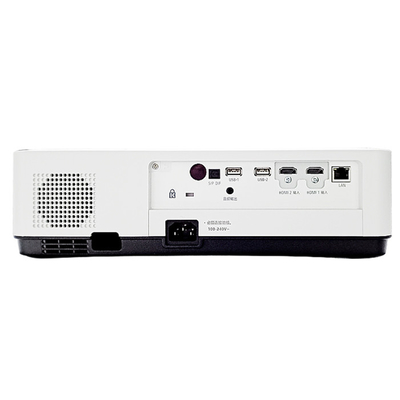

| Terminal(I/O port) | |||
| VGA | *1 | ||
| HDMI | *2 | ||
| Video | *1 | ||
| Audio in (mini jack,3.5mm) |
*1 | ||
| Input | Audio in(L/R) --RCA |
*1 | |
| USB-A 2.0 | *1 | ||
| USB-B | *1(Display) | ||
| RJ45 | *1(Display) | ||
| Output | VGA | *1 | |
| Audio out (mini-jack,3.5mm) |
*1 | ||
| Control | RS232 | *1 | |
| RJ45 | *1 (Control) | ||
| USB-B | *1(for up-grade) | ||
| General Spec | |||
| Audio | Speaker | 1*10W | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz | |
| Power consumption (W) | 320 | ||
| Power Consumption (ECO) | 224 | ||
| ECO Standby Mode Power Consumption | <0.5W | ||
| Network standby Power Consumption | <2W | ||
| Temp.&Humidity | Operating Temp. | 0℃~40℃(35~ ECO) | |
| Store Temp. | -10℃~~55℃ | ||
| Oparating Humidity | 20%~85% | ||
| Storage Humidity | 10%~85% | ||
| Mechanical Design | Security bar | Yes | |
| Password protections | Yes | ||
| Control Panel Lock | Yes | ||
| Kenginston Lock | Yes | ||

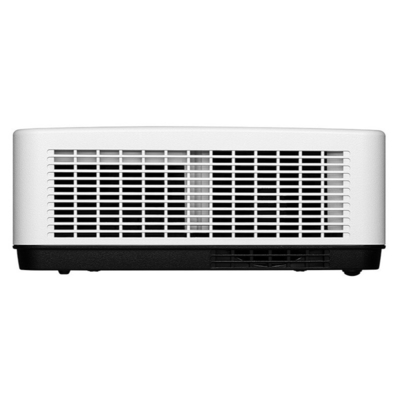

| Ventilation (In/Ex) | Side/Side | ||
| Lamp access | Top | ||
| Filter access | Side | ||
| Dust filter | ESD filter(静电) | ||
| Keystone | Keystone Correction | V: ±30°(auto+manual) H:±15°(manual) Corner Keystone | |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
|
| LAN Control | LAN Control-RoomView (Crestron) | Yes | |
| LAN Control-AMX Discovery | Yes | ||
| LAN Control-PJ Link | Yes | ||
| Scanning Frequency | H-Synch Range | 15~100KHz | |
| V-Synch Range | 48~85Hz | ||
| Display Resolution | Computer Signal Input |
|
|
| Video Signal Input | NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N, | ||
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC, AUTO Keystone |
|
| Audio muting(Muting) | Yes | ||
| Suspend | Yes(5miniutes no singnal as default) | ||
| Picture mode | Dynamic,Standard,Cinema, Blackboard,Colorboard | ||
| Lamp mode | NORMAL,ECO | ||
| Filter Cleaning Cycle | 100/200/300 hours | ||
| Cooling time | 0S,60s,90s | ||
| Closed caption | Yes | ||
| High altitude | Yes(1400~2700m) | ||
| Signal Power On | Yes | ||
| Turn on countdown | Customized-(5S, 10S, 30S..) | ||
| Auto Ceiling | Yes | ||
| D-Zoom | 1~33 steps | ||
| Dimension&Weig | Others | ||
| MAX Dimensions (WxHxD mm) | 345*261*99 | ||
| Net. Weight (KG) | ~3.26 | ||
| Packaging Box Dimensions (WxHxD mm) | 442(L) X 386(W) X 195mm(H) | ||
| Gross. Weight (KG) | 4.7 | ||
| Accessory | |||
| Regulation List | Standard Accessaries | Power cord, VGA cable, Remote control | |
| China | Safety and EMC | CCC | |
| 节能环保 | CECP | ||
| USA/Canada | Safety | cTUVus | |
| CB | |||
| EMI | FCC | ||
| E.U EMC Class |
EMC | CE | |
| EMC class | Class B@3dB | ||
